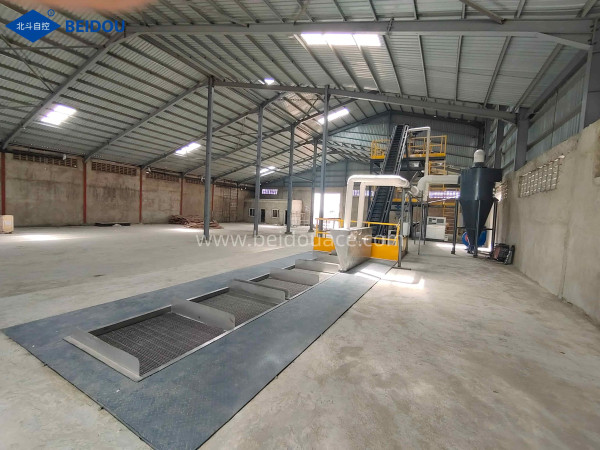

High-Efficiency Cyclone Dust Collector for BB Fertilizer Plants - Beidou ACE

Product Overview
The High-Efficiency Cyclone Dust Collector is a mechanical dust removal device that utilizes centrifugal force to separate solid particles from the air stream. It is the definitive solution for controlling coarse granular dust generated during batching, mixing, and bagging processes in BB fertilizer production lines.

Working Principle
Dust-laden air enters the cyclone from the tangential inlet, forming a high-speed rotating airflow. Under the action of centrifugal force, heavier dust particles are thrown against the inner wall and slide down into the conical ash hopper for collection. The clean air then exits through the central exhaust pipe at the top. This simple yet highly effective design requires no complicated moving parts.

Technical Specifications

• Processing Capacity: 1 - 20 Tons per Hour

• Dust Removal Efficiency: Greater than 95 percent (for particles larger than 10 microns)

• Airflow Volume: 1,000 to 50,000 Cubic Meters per Hour

• Body Material: Heavy-duty carbon steel with advanced anti-corrosion coating

• Hopper Capacity: Customizable based on plant requirements

• Working Temperature: Standard design for ambient temperature (customizable for high-temp applications)

• Power Supply: 380V / 50Hz (Customizable for 415V or 400V)

Key Features & Performance

• Ideal for Granular Dust: Specifically engineered to capture the larger, heavier particles found in BB fertilizer blending.

• Zero Consumables: Contains no filter bags or cartridges, eliminating the need for frequent replacement and drastically lowering long-term operational costs.

• Material Recovery: The collected dust is typically high-quality raw material (urea, DAP, or MOP fines) that can be directly recycled back into the next production batch. This turns potential waste into real savings.

• Durable Construction: Manufactured with heavy-duty steel and specialized chemical-resistant coatings to withstand the highly corrosive nature of fertilizer materials.

• Easy Integration: Designed to be seamlessly integrated with our fully automatic BB fertilizer production lines or retrofitted to existing plants.

Application Areas
Batching hoppers, belt conveyor transfer points, and automatic packing machines within BB fertilizer plants.
